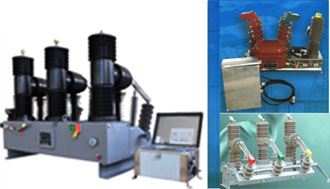

Intelligent high-voltage vacuum

Circuit Breaker Service

– Norminal voltage                                             11kV                      35kV

– Rated Current                                            630A, 1250A    1250A, 2500A

– Highest Syatem Voltage                                   12kV                      40.5kV

– Lightning impulse withstand voltage (peak)   75/85 kV      185kV

– Rated short circuit breaking current                 20kA                     31.5kA

– Rated short circuit closing current (peak)        20kA                       31.5kA

– Weight                                                              120kg                    325kg

– Degree of Protection                                                IP67                IP67

Control Unit

– Interface . USD, RS 232 and RS 485 ports,

wireless (GPRS/GSM Modern )

– Remote/local Switch

– Number of Sequential Trip to each lockout      5                5

– Over Current/Earth Fault protection

– Over/Under voltage protection

– Over/Under frequency protection

– Degree of Protection                                        IP54                       IP54

– Functional Keypad
